PF-16

PF-16

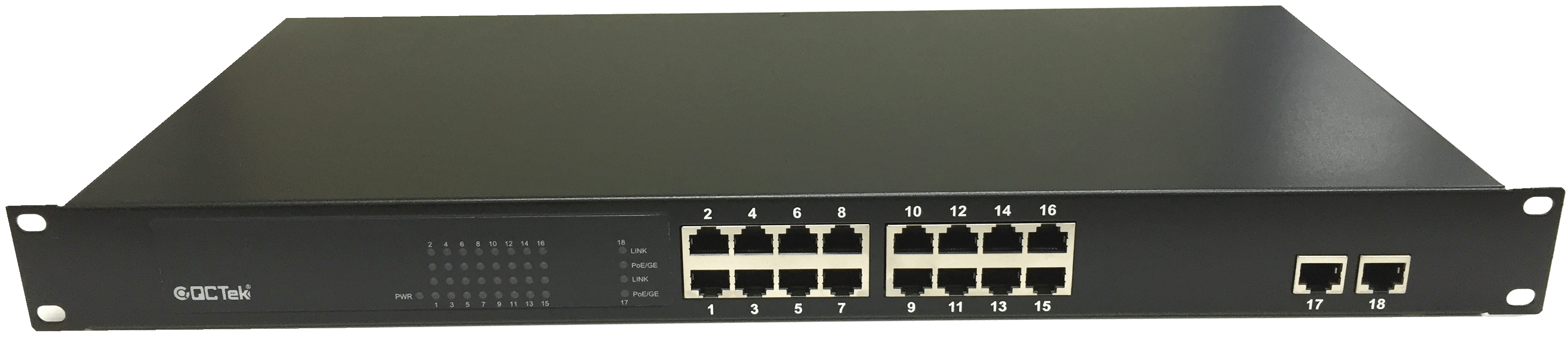

The PF-16 features a 16-ports 10/100/1000Mbps Gigabit Ethernet Switch with IEEE 802.3at/af Power over Ethernet interfaces and 2-Port Gigabit SFP for Fiber. It supports MDI/MDI-X function on all 10/100/1000Mbps ports and provides Power injection on each LAN port which complies to IEEE 802.3af (15W) and 802.3at (30W) PoE powered devices.

With N-way auto-negotiation, each port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps or 1000Mbps and Half/Full-Duplex mode, and adjust accordingly. All the ports support wire-speed in full-duplex mode by using non-blocking 32Gbps switching backplane. With the store and forward features, it maximizes network performance and allows running a smooth network.

The 19" rack-mounted PF-16 offers a more flexible and economic PoE option and greatly simplified the tasks of upgrading network equipments. It provides a simple, cost-effective, and reliable network connection for data and power over Ethernet.

Inquiry ▶
Description

►Key Features


        ‧   16 Ports 10/100M + 2 Combo ports of 10/100/1000M Nway (Auto-negotiation) Switch
        ‧   16 IEEE 802.3af PSE/PoE function ports
        ‧   Supporting 15.4W (Max) power for each PSE/PoE port
        ‧   19” rack-mount size
        ‧   Auto-learn of networking configurations
        ‧   Auto-detect full/half-duplex modes for any port
        ‧   Dedicated full-duplex 200Mbps bandwidth
        ‧   Store-and-Forward switching methods
        ‧   IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex
        ‧   Non-blocking & Non-head-of-line blocking full wire speed forwarding
        ‧   Auto-MDI/MDI-X function for any port
        ‧   Smart plug & play
