PG-08

PG-08

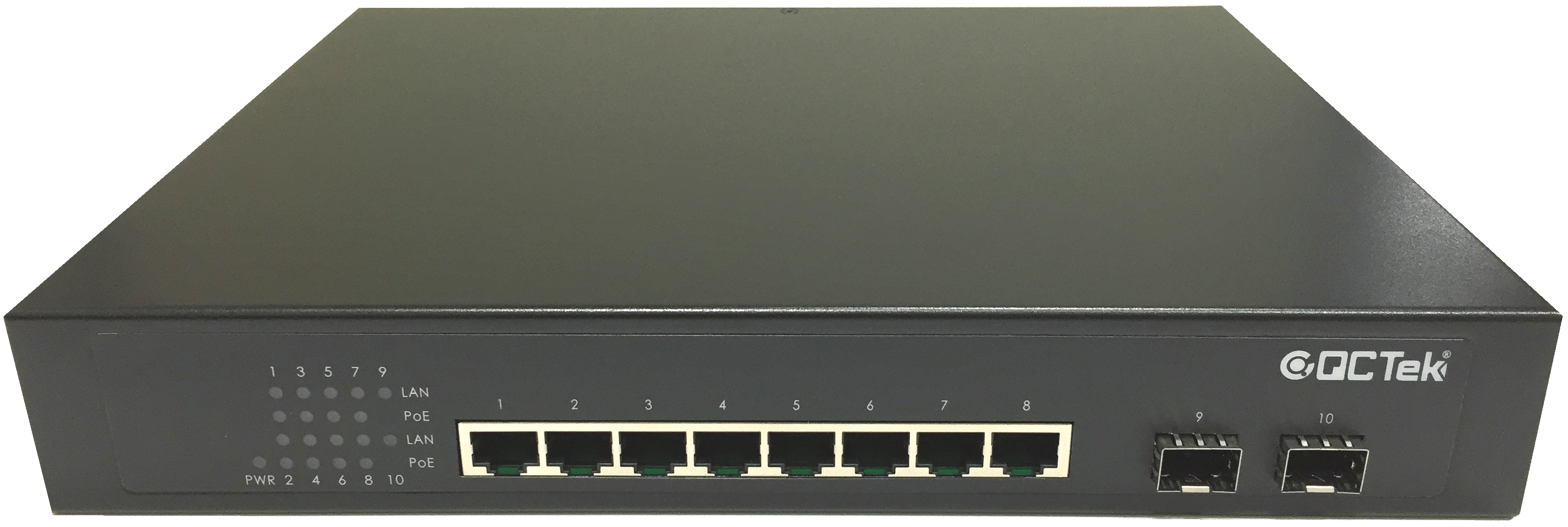

PG-08 , a 10-port Gigabit PoE+ Switch, is a standard Gigabit Ethernet switch that meets all IEEE 802.3/u/x/z/ab/af/at standards. The switch includes 8-Port 10/100/1000Mbps RJ-45 with PoE+ function and 2-Port Gigabit SFP for Fiber. It is an ideal solution for applications of wireless AP, IP phones and IP cameras.

Inquiry ▶
Description

►Key Features


        ‧   8 x RJ-45 ports for Gigabit Ethernet connection with PoE+ capacity
        ‧    2 x SFP ports flexible for fiber connection
        ‧    Support Jumbo Frame size up to 9KB
        ‧    IEEE802.3at/af Power Over Ethernet
        ‧    Plug and play for easy configuration
        ‧    Technical Specifications
                      Standard compliance
                           -IEEE 802.3 10Base-T Ethernet
                           -IEEE 802.3u 100Base-TX Fast Ethernet
                           -IEEE 802.3ab 1000Base-T Ethernet
                           -IEEE 802.3z 1000Base-X Ethernet
                           -IEEE 802.3x Flow Control capability
                           -IEEE 802.3at/af
        ‧    Switching capacity:
                           -8 Gigabit Ethernet ports with non-blocking wise speed performance.
                           -16Gbps switch capacity
                           -8 K MAC addresses
                           -Supports Jumbo frame, up to 9K
        ‧    PoE Features
                           -8 x IEEE802.3at/af PoE+ PSE ports
                           -Endpoint with 54VDC power through RJ-45 pin 1, 2, 3, 6
                           -PoE-PSE activity LED indicator
                           -Auto detect powered device
                           -120 watts of total power
