AC-224B

AC-224B

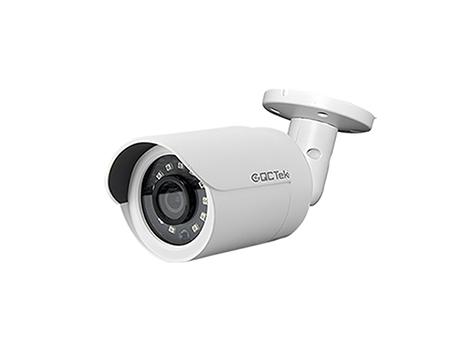

2MP 4-in-1 IR Bullet Camera



The AC-224B 4-in-1 (HDCVI/HDTVI/AHD/CVBS) IR Bullet camera is composed of 1/2.9" 2MP resolution SONY CMOS sensor and 3.6mm fixed lens (optional:6/8mm). It uses built-in IR LEDs with a range of up to 20m, providing excellent coverage of all objects within the range, during the day and night.

The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. It is the ideal choice for all indoor and outdoor retail environments requiring excellent image quality and reliability.





Inquiry ▶
Description

▼ Specifications ▼

◆  Image Sensor: 1/2.9" 2MP Sony CMOS Sensor

◆  Effective Pixels: 1985(H)× 1105(V)

◆  Video Resolution: 30/25fps@1920×1080, 1080×720, 960×480

◆  Electronic Shutter: Auto, 1/50s ~ 1/60,000s

◆  Min. Illumination: 0.01lux@F1.2(AGC On), 0lux IR On

◆  Video Format: NTSC / PAL

◆  Video Output: 1 BNC, HDCVI/HDTVI/AHD/CVBS, adjustable

◆  Video Switch: Dip switch

◆  OSD Menu: Support, control up the coaxial cable (UTC)

◆  SMART IR: On / Off

◆  Day/Night: Auto (ICR) / Color / B/W / EXT

◆  Exposure mode: Global / Center / BLC / FLC

◆  White Balance: ATW / MWB / GRAY Would

◆  Noise Reduction: 3D DNR

◆  WDR: D-WDR: On / Off

◆  Video Adjust: Brightness, Contrast, Sharpness, Saturate

◆  Other Function: AGC, ATW, BLC, 3D-DNR, D-WDR

◆  Focal length: 3.6mm fixed @F2.0 (optional: 6mm, 8mm)

◆  Angle of View: H：83.7° ; V：45.5°

◆  IR LEDs: 12 PCS SMD IR LEDs

◆  IR Distance: 15~20M

◆  Power Supply: 12 VDC ±10％

◆  Power Consumption: <5W

◆  Operating Temperature: -20℃ ~ 60℃ / 10％~90％RH

◆  Dimensions: L: 173 x H: 62.7 mm

◆  Transmission distance: Over than 300M (Coaxial cable 75-3)

◆  Certificate & Protection: CE, FCC, IP66

◆  Casing Material: Metal



* Specifications are subject to change without prior notice.
