‧ 3-axis joystick for handy PTZ control
‧ user-friendly button placement and LCD display for instant operation
‧ shattering the market with the exclusive “Mouse Mode”
‧ two-level jog shuttle with variable speed control

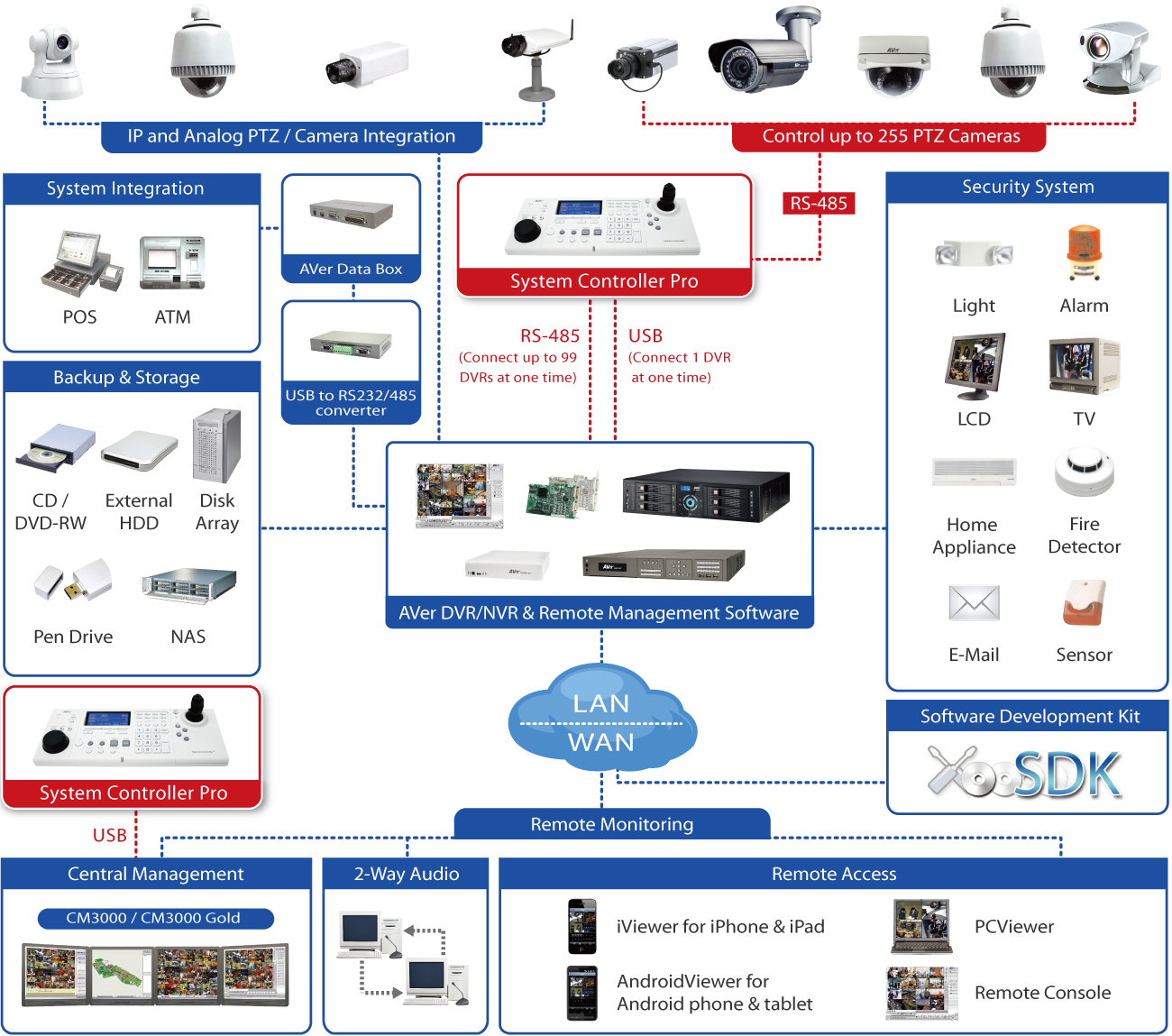

‧ controls up to 255 PTZ cameras via an RS-485 interface
‧ 1 built-in microphone and 1 audio output for easy installation
‧ supports PTZ protocol: Pelco-P and Pelco-D
‧ lock protection to prevent unauthorized operation
‧ USB upgrade available for future updates
‧ compatible with CM3000/CM3000 Gold
Live monitoring operation
‧ change live display layout to the 1/4/8/9/13/16/32-screen configuration
‧ able to select channels for display of detailed settings
‧ start/stop channel auto scan during live monitoring
‧ adjust audio volume
‧ digital zoom for selected areas of live video
‧ switch to full screen mode
Camera operation
‧ camera connection and display settings
‧ configures hue/brightness/saturation/contrast of camera
‧ de-interlace mode setting
‧ trigger IP camera (network camera) relay output
Playback operation
‧ two-level jog shuttle to move forward and backward at various speeds
‧ play/pause button
PTZ operation
‧ connect to PTZ through DVR or RS-485 interface directly
‧ auto pan/IRIS/manual focus control
‧ PTZ preset points setting available
General operation (AVer Windows® based DVRs/NVRs)
‧ start system recording
‧ enable DVR network connection
‧ snapshot
‧ trigger alarm
‧ alarm/event log
