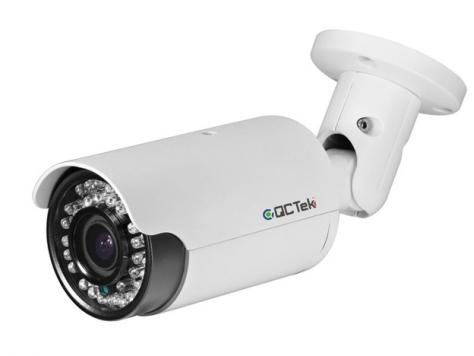

►Key Features
‧ 1/2.8" 2.0 Megapixel Progressive Scan Sony Exmor IMX222 CMOS sensor
‧ Ti DaVinci Series DSP
‧ H.264 & MJPEG dual-stream encoding
‧ Max 25/30fps @ 1080P (1920×1080)
‧ Dual encoding streams supported
‧ 3.3-10mm /F1.4 Vari-focus lens
‧ Max IR Distance: 36 pcs Φ5 IR lights,30m
‧ True Day/Night ICR
‧ IP66 all-environments protection
‧ Support DC12V power supply, PoE
Specification :
General |
Main Processor |
Ti DaVinci Series DSP |
Operating System |
embedded LINUX |
Resource |
Simultaneous remote monitoring local recording and remote control |
User Interface |
WEB CMS NVR APP |
Camera |
Image Sensor |
1/2.8" 2.0 Megapixel Progressive Scan Sony Exmor IMX222 CMOS sensor |
Effective Pixels |
1920(H)×1080(V) |
Electronic Shutter |
1/5s to 1/50000s |
Mini. Illumination |
Color:0.1Lux/F1.2; B/W:0.01Lux/F1.2; 0Lux/F1.2(IR on) |
Signal Noise Ratio |
>50dB |
Day/Night Mode |
Auto dual IR-Cut filter |
Gain Control |
Auto/Manual |
White Balance |
Auto/Manual |
WDR Dynamic Range |
DWDR |
Lens |
3.3-10mm/F1.4 Vari-focus lens |
Max IR Distance |
36 pcs Φ5 IR lights 30m |
Video |
Video Compression |
H.264/MJPEG Optional |
H.264 Encode Type |
H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
Video Bit Rate |
Main Stream: 200Kbps~12Mbps |
Sub Stream: 100Kbps~6Mbps |
Image Resolution |
1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
Encoding Speed |
Main Stream: 1080P/720P (1~25fps/30fps) |
Extra Stream: D1/CIF(1~25fps/30fps) |
Video Format |
PAL/NTSC |
Network |
Ethernet |
RJ-45 (10/100base-T) |
Network Protocol |
Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
Common Features |
One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
ONVIF |
ONVIF Ver.2.4 |
Max User Access |
10 users |
Smart phone |
Iphone Ipad Android |
Remote Operation |
Monitor System setting Log information Maintenance & Upgrade |
Auxiliary Interface |
Reset Input |
One Reset Button(Hold on 3 seconds at least) |
Environmental |
Power Supply |
DC12V |
Power Consumption |
<10W |
Working Environment |
-40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
Protection Level |
IP66 |
Dimensions(mm) |
179mm x 73mm |
Weight(kg) |
0.692Kg |
PoE |
IEEE802.3af |
|
